DAXTROMN 3.6KW 6.2KW Hybrid Solar Inverter 48V 220V 80A MPPT Solar Controller 90-450V Grid Tie Inverter With Wifi Grid Feedback

DAXTROMN 3.6KW 6.2KW Hybrid Solar Inverter 48V 220V 80A MPPT Solar Controller 90-450V Grid Tie Inverter With Wifi Grid Feedback

$952.80 USD
$1,429.20 USD $952.80 USD
Sale Sold out
Color
Ships From
Output Voltage

3.6KW 6200W Hybrid Solar Inverter 48V 220V 80A MPPT Charge Controller 90-450V Grid Tie & Off Grid Inverter With Wifi Grid Feedback



Feature Of Hybrid Solar Inverter


1.Pure Sine Wave Solar Inverter

2.Max 120A MPPT Solar Charger

3.Max 450VDC PV Input

4.High PV input voltage range(120~450VDC)

5.Output power factor1.0

6.Real Hybrid Grid Solar inverter for 48V system

7.Wifi Module for easily connection

8.Efficiency work with or without battery

9.Bundled monitoring & setting software

10.Supports 50hz or 60hz (program adjustable)

11.Able to use ac grid or generator power

12.Built-in anti-dusk kit for harsh environment

13.Optional DC output for DC fan, LED bulb,router and so on

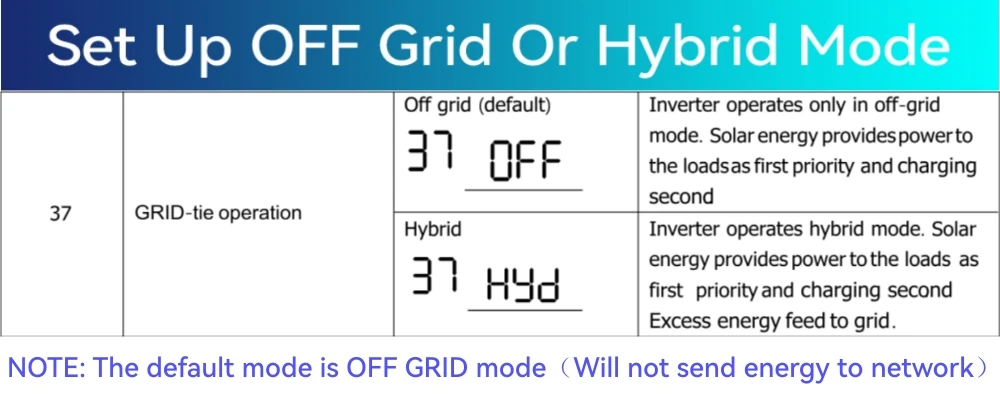

Note:

This is a wide voltage Hybrid Solar inverter, If Solar Inverter without external battery ,The voltage which starts to connect to the solar panel must be above 150V for the inverter to work normally, if with external battery 120V is working.

Question & Answer

Q: Whats the Rated output power ?
A: Its 3600W for Model:AGH-3.6KW And 6200W for Model:AGH-6.2KW
Q: Whats the max charge currency for battery ?
A: Its 120A
Q: Whats the MAX DC PV Input?
A: Its 450VDC
Q: How many volts of external battery use ?
A: 24V for Model :AGH-3.6KW and 48V for AGH-6.2KW
Q: It can support Parallel ?
A: No it can not support .If you need to support Parallel ,Please check our BGH-5KW(Up to 9pcs) And BOH-8KW(Upt to 6pcs)
Q: Whats the warranty?
A: 1 Year
Q: If it has Wifi Model ?
A: Yes


Specification Of 3.6KW 6200W Hybrid Solar Inverter


Model

AGH-3.6KW

AGH-6.2KW

PHASE

1-phase

MAXIMUM PV INPUT POWER

6200W

RATED OUTPUT POWER

3600W

6200W

MAXIMUM CHARGING POWER

6200W

GRID-TIE OPERATION

PV INPUT(DC)

Nominal DC Voltage/Maximum DC Voltage

360VDC/500VDC

Start-up Voltage/Initial Feeding Voltage

120VDC

MPPT Voltage Range

90VDC~450VDC

Number of MPPT Trackers/Maximum Input Current

1/27A

GRID OUTPUT(AC)

Nominal Output Voltage

220/230/240VAC

Output Voltage Range

195.5~253VAC

Nominal Output Current

15.7A

26.1A

Power Factor

>0.9

EFFICIENCY

Maximum Conversion Efficiency(DC/AC)

97%

OFF-GRID OPERATION

AC INPUT

AC Start-up Voltage/Auto Restart Voltage

120-140VAC/180VAC

Acceptable Input Voltage Range

90-280VAC or 170-280VAC

Maximum AC Input Current

30A

40A

PV INPUT(DC)

Maximum DC Voltage

500VDC

MPPT Voltage Range

90VDC~450VDC

Number of MPPT Trackers/Maximum Input Current

1/27A

BATTERY MODE OUTPUT(AC)

Nominal Output Voltage

24VDC

48VDC

Output Waveform

Pure sine wave

Efficiency(DC to AC)

94%

HYBRID OPERATION

PV INPUT(DC)

Maximum DC Voltage

360VDC/500VDC

Start-up Voltage/Initial Feeding Voltage

120VDC

MPPT Voltage Range

90VDC~450VDC

Number of MPPT Trackers/Maximum Input Current

1/27A

GRID OUTPUT(AC)

Nominal Output Voltage

220/230/240VAC

Output Voltage Range

195.5~253VAC

Nominal Output Current

15.7A

26.1A

AC INPUT

AC Start-up Voltage/Auto Restart Voltage

120~140VAC/180VAC

Acceptable Input Voltage Range

90~280VAC or 170~280VAC

Maximum AC Input Current

30A

40A

BATTERY MODE OUTPUT(AC)

Nominal Output Voltage

220/230/240VAC

Efficiency(DC to AC)

94%

BATTERY & CHARGER

Nominal DC Voltage

24VDC

48VDC

Maximum Solar Charging Current

120A

Maximum AC Charging Current

80A

Maximum Charging Current

120A

GENERAL

PHYSICAL

Dimension, D*W*H(mm)

420*310*120

Net Weight(KGS)

11

13

INTERFACE

Communication Port

WIFI

ENVIRONMENT

Operating Temperature

0℃~90℃

Storage Temperature

-10℃~50℃
